SN515

Bore
65 mm
Outer
130 mm
Width
80 mm
Wight
8.4 kg
Plummer block housings
It offers both rigid support and ease of installation and maintenance, making it suitable for applications such as conveyor systems, fans, and metallurgical equipment where bearings need to be replaced quickly.
SN515

Main technical Specifications

New Designations :
SN515
Main demensions :
65 × 130 × 80
Bore Dia × Outside Dia × Width Dia (mm)
M :
8.4 kg
Weight
ID :
65 mm
Inside diameter(I.D.)
OD :
130 mm
Outside diameter(O.D.)
T(B) :
80 mm
Thickness(W.D.)
Category :
Plummer block housings

Detailed parameters and installation dimensions:

d1: 65 mm, d1: 2-1/2 in, D: 130 mm(H8), a: 280 mm, b: 80 mm, c: 30 mm, g: 41 mm(H12), h: 80 mm(H12), L: 115 mm, L1: 120 mm, W: 155 mm, n: 40 mm, m: 230 mm, s: M16 mm, u: 18 mm, v: 23 mm, x: 38 mm, d2: 67 mm(H12), d3: 82 mm(H12) f1: 5 mm(H12), f2: 6.8 mm,

Part Number: SN515
Bearing Type: Plummer block housings / Y-Housing
Size(metric): Bore Dia. (d): 130,00 mm X Outer dia. (D): 155,00 mm X Width (B): 120,00 mm or Size: 130,00 mm * 155,00 mm * 120,00 mm
Original Equipment Manufacture(OEM NO.): SN515

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

SN515 refers to a type of Plummer block housings, with dimensions 65 mm (Bore) x 130 mm (OD) x 80 mm (Width), designed for High versatility, superior heavy-duty capacity, and adaptability to extremely harsh environments, primarily used in Conveyor rollers, long shafts of heavy equipment, for applications It addresses the challenges of heavy-duty, long-shaft, low-to-medium speed, and harsh environments in heavy industry, conveyor systems It weight approximately 8.4 kilogram.

  • Min. Order: 1 Piece/(SN515, 65 = ID, 130 = OD, 80 = B, 8.4 kg) or according to different suppliers
  • Price: Different brands, different quality, different SN515 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

inquiry Bearing 21311 E, 6311-2RS1/W64, 6314/W64

Dear Sir, My company in Russia. Could you please, quote me SKF bearings? Bearing 21311 E- 10 pcs Bearing 6311-2RS1/W64- 10 pcs

What are the Benefits of choosing SN515 bearings?

  • Quick Installation: Split structure eliminates the need to disassemble the shaft or coupling, allowing direct bearing replacement and halving downtime.
  • Self-aligning: Works with self-aligning bearings to compensate for ±1.5° installation errors or shaft deflection, reducing alignment requirements.
  • Wide Range of Applications: Multiple seal options are available to adapt to harsh environments such as dust, humidity, and high temperatures.
  • Easy Maintenance: Top lubrication hole + base relubrication channel allow for online maintenance without disassembly.
  • The SN515 Plummer block housings adopts a High versatility, superior heavy-duty capacity, and adaptability to extremely harsh environments design, with dimensions an inner diameter of 65 mm, an outer diameter of 130 mm, a width of 80 mm, ensure the equipment operates more stably for applications It addresses the challenges of heavy-duty, long-shaft, low-to-medium speed, and harsh environments in heavy industry, conveyor systems

What are the applications of the SN515 bearing?

  • General Machinery: Used in conveying equipment, fans, and textile machinery. Bearings can be replaced without disassembling the shaft, significantly reducing downtime.
  • Mining/Metallurgy: Used in belt conveyors, vibrating screens, and material handling systems. Adaptable to dusty, heavy-duty environments, with automatic self-aligning to compensate for installation errors.
  • Light Industry/Food: Used in packaging machinery and food processing equipment. Available in stainless steel or with high-efficiency sealing, corrosion-resistant and easy to clean.

Comments

  1. Wafangdian AA Bearing Trade Co.,Ltd
    Email: [email protected] Tel: 86-159-06428604 2025-07-31

    80 BEARING, BALL: TYPE: CONRAD; STYLE: OPEN; INSIDE DIAMETER: 30 MM; OUTSIDE DIAMETER: 72 MM; WIDTH: 19 MM; ROW: SINGLE; SUPPL P/N: 6306 C3; VENDORS ARE RESPONSIBLE FOR ENSURING THAT THEY ARE PERFORMING AGAINST THE CORRECT DRAWING REVISION NUMBER (IF APPLICABLE). EA 50 SKF

    87 BEARING, PILLOW BLOCK: INSIDE DIAMETER: 65 MM; BOLT MOUNTING: 2; BOLT DIAMETER: M16; BLOCK SIZE: WD 80 X LG 280 X HT 148 MM; SHAFT HEIGHT: 80 MM; ROLLING ELEMENT: SPHERICAL; HOUSING MATERIAL: CI; SUPPL P/N: SN515; SELF ALIGNING, MEDIUM DUTY, WITH DOUBLE LIP SEAL EA 30

  2. tradebearings
    Email: [email protected] Tel: 86-0578-18167086030 2019-03-02

    We require skf sn515 plumber block 2 nos

    Hi, Do you have SN515 bearing of SKF series?

    Price and ETA for 2 x SN 515 Plummer block 65x130x80x180mm

    I am looking for this SN515 bearing. Is it with 4 nut? If affirmative, please tell me the cost for 1 unit including shipping to USA, zipcode 33186. Regards,

    Hi I would like to purchase 6 of those bearings

Leave A Comment

Other models the same size : 65x130x80

SNG515-612

Plummer block housings   65 * 130 * 80 M: 7.7

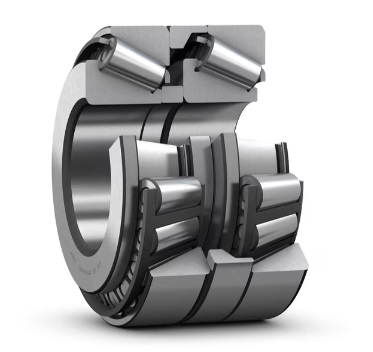

T7FC 065T80/CL7CDTC30
