7009CE/DTVQ126
Main technical Specifications

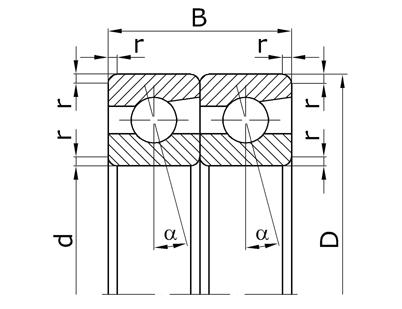

Detailed parameters and installation dimensions:
| Part Number | 7009CE/DTVQ126 |
| Internal design | CE = 15° contact angle, high-speed E design |
| Dimension series | ISO dimension series 10 |
| Bearing Type | super-precision angular contact ball bearings |
| Series | 70..-CE/DTVQ126 |
| Rows NO. | 2 |
| Bearing Mass - m | 0.48 kg | 1.058 lb |
| Accuracy class | P4A |
| Cage | Cotton fabric reinforced phenolic resin or carbon fibre reinforced PEEK, outer ring centred |
| Seal | Open |
| Ball material | GCr15SiMn |
| Ring material | Carbon chromium steel |
| Bore Type | Z = Cylindrical Bore |
| Matched arrangement | Tandem << |
| Arrangement and preload | DT = Set of two bearings arranged in tandem << |
| Reference From | SKF 7009CE/DTVQ126 |
| Dimension | |
| Bore - d φ | 45 mm | 1.772 inch |
| d tolerance | -0.004 mm to 0 |
| Outside - D Φ | 75 mm | 2.953 inch |
| D tolerance | -0.004 mm to 0 |
| Width - B | 32 mm | 1.260 inch |
| B tolerance | -0.2 mm to 0 |
| Balls diameter | 7.144 mm | 0.281 inch |
| Balls qty | 21 |
| d1 | 55.7 mm |
| d2 | 53.6 mm |
| D1 | 64.25 mm |
| Chamfer - r1,r2(min.) | 1 mm |
| Chamfer - r3,r4(min.) | 0.6 mm |
| Fillet - ra(max.) | 1 mm |
| Fillet - rb(max.) | 0.6 mm |
| Load Capacity and speeds | |
| Dynamic Radial - Cr | 20706 N | 4654 lbf |
| Static Radial - C0r | 16905 N | 3800 lbf |
| Fatigue Radial - Pu | 685 N | 153 lbf |
| Properties | |
| Axial clearance/preload | Not applicable |
| Lubrication | No |
| Contact angle - α | 15 ° |
| Universal matching | No |
| Temperature - T(min) | -30 °C |
| Temperature - T(max) | 110 °C |
| Manufacturer Part Code | 7009 CE/DTVQ126 |
| Units | Metric |
| Load Direction | Angular Contact |
| Contact type | 2-point contact |
| Ring type | inner rings(1 piece), outer rings(1 piece) |
| Coating | No |
| Reference grease quantity - Gref | 3.4 cm3 |
| Coefficient - f0 | 8.2 |
| Abutment dimensions | |
| da(min.) | 49.6 mm |
| db(min.) | 49.6 mm |
| Da(max.) | 70.4 mm |
| Db(max.) | 70.8 mm |
| dn | 57.6 mm |
NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
7009CE/DTVQ126 refers to a type of 70..-CE/DTVQ126 super-precision angular contact ball bearings, with dimensions 45 mm (Bore) x 75 mm (OD) x 32 mm (Width), designed for High speed, ultra-precision, high rigidity, low operating friction, and long service life, primarily used in CNC machine tool spindles and other high-precision machinery, featuring 2 (row) construction, Cotton fabric reinforced phenolic resin or carbon fibre reinforced PEEK, outer ring centred retainer to ensure extended service life, advanced Open, P4A (precision) for applications the field of precision machinery, especially high-speed and high-precision spindle systems, requiring high running accuracy and the accommodation of radial and axial loads simultaneously. . it's built to handle significant loads (dynamic radial: 20706 N, static radial: 16905 N, ), It weight approximately 0.48 kilogram.
- Min. Order: 1 Piece/(7009CE/DTVQ126, 45 = ID, 75 = OD, 32 = B, 0.48 kg) or according to different suppliers
- Price: Different brands, different quality, different 7009CE/DTVQ126 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
Data Transfering...
✨What are the Benefits of choosing 7009CE/DTVQ126 bearings?
🏭 What are the applications of the 7009CE/DTVQ126 bearing?
📐 How should choose the right model for a High precision angular contact ball bearings?
Step 1: Select Series by Size
Determine the ISO size series based on installation space and load requirements:
718 Series: Ultra-light, extremely low cross-section height, suitable for space-constrained applications.
719 Series: Extremely light, a general-purpose choice, balancing rigidity and speed.
70 Series: Light, the most commonly used series, with a wide range of applications.
72 Series: Robust, largest cross-section, suitable for heavy-duty, relatively low-speed applications.
Step 2: Select Internal Design by Working Condition (Crucial)
This is the core of SKF selection; different suffixes correspond to different performance orientations:
High Load Capacity D Design: Suffix CD (15° contact angle) or ACD (25° contact angle). Utilizes a large ball design, offering the highest rigidity and load-bearing capacity, suitable for general-purpose machine tool spindles such as machining centers and lathes.
High Speed E Design: Suffix CE (15°), FE (18°), or ACE (25°). Featuring a small, multi-ball design, this bearing boasts higher speed capabilities than the D design, suitable for ultra-high-speed applications such as electric spindles and PCB drilling.
High-Speed B Design: Suffixes CB (15°), FB (18°), or ACB (25°). Smaller and lighter balls, suitable for extremely high speeds and light loads.
UltraFast A Design: Suffix AB (20° contact angle). Available only with hybrid ceramic balls, designed specifically for electric spindles demanding extreme speeds.
Sealed W Design: Suffix FW (18° contact angle). Available only with hybrid ceramic balls, featuring double-sided sealing and lifetime lubrication, suitable for medium-to-high-speed, maintenance-free equipment such as woodworking machinery.
Step 3: Identifying the Seal and Suffix
Seal Identification (Prefix): Models starting with S indicate double-sided sealing (e.g., S7010), pre-filled with grease at the factory, requiring no maintenance for life. Those without S are open bearings.
Material: HC indicates hybrid ceramic balls (ceramic balls + steel rings), enabling higher speeds, electrical insulation, and longer lifespan.
Preload (universal pairing): GA (ultra-light preload), GB (light preload), GC (medium preload). This is a suffix for a single bearing, indicating that the bearing can be arbitrarily paired and combined to achieve a specified preload.
Precision: P4 (ISO Class 4, standard ultra-precision), P4A (operating precision higher than P4), P2 (highest grade).
Arrangement (pair/group suffix): DB (back-to-back), DF (face-to-face), DT (tandem), QBC (quadruple, tandem back-to-back configuration), etc.
Typical Model Explanation
Taking S7010 ACD/HCP4A QBC C as an example:
S: Double-sided seal (lifetime lubrication)
7010: 70 series, 50mm inner diameter
ACD: 25° contact angle, D design (high load capacity)
HC: Hybrid ceramic balls
P4A: Precision grade (super P4)
QBC: Quadruple bearing assembly, tandem back-to-back configuration
C: Medium preload (for heavy preload)
Taking 71922 CDGB TNHA/PA9A L as an example:
71922: 719 series, 110mm inner diameter
CD: 15° contact angle, D design (high load capacity)
GB: Light preload (universal matching)
TNHA: Glass fiber reinforced PEEK cage, outer ring centering
PA9A: Precision grade (ISO) Level 2)
L: Light preload (for triple/quadruple units only)
Selection Key Points Summary
First determine the series: 718/719/70/72
Then determine the design: CD/ACD (high load capacity) or CE/ACE (high speed) or FW (sealing) or AB (UltraFast)
Confirm the seal: Select the S prefix for lifetime lubrication
Optional suffixes: Material HC, Preload GA/GB/GC, Accuracy P4/P4A, Arrangement DB/DF/DT/QBC
🛠️ What is the mounting procedure for 7009CE/DTVQ126 bearings?
Cleaning and Inspection: Clean the bearing in a dust-free environment. After a rough wash to remove contaminants, perform a fine wash until the bearing feels smooth and responsive to the touch. Simultaneously check the accuracy of the mating surfaces of the shaft and bearing housing.
Measurement and Fitting: Precisely measure the bearing's inner and outer diameters. Mark the corresponding positions on the shaft and housing bores for alignment during assembly to compensate for any deviations.
Installation and Positioning: Apply pressure evenly using a specialized tool, focusing only on the interference fit rings. If heat fitting is used, tighten the inner ring during cooling to prevent clearance from affecting the preload.
Preload Adjustment: When installing in pairs, ensure the parallelism of the inner and outer spacers is ≤1μm. Adjust the preload force to the specified value by grinding the spacers.
Lubrication Inspection: Add the specified amount of grease or oil mist lubricant. After installation, manually rotate the bearing to check its flexibility and operating noise.
📋 Special Note for mounting 7009CE/DTVQ126 bearings?
Clean Environment: Operation must be performed in a dust-free cleanroom with humidity ≤65% to prevent dust and impurities from affecting accuracy.
No Striking: Direct striking of the bearings is strictly prohibited. Special tools must be used, and force must be applied evenly.
Matching Marks: Bearings used in pairs are not interchangeable. Installation must strictly follow the factory matching marks.
Rust-Proof Storage: Long-term storage requires regular rust-proofing treatment. Maintain ventilation and avoid corrosive gases.
