A-UC215-300D1

Bore
76.2 mm
Outer
130 mm
Width
77.8 mm
Wight
- kg
Insert Bearing Units
Self-aligning, easy to install, and with good sealing performance; widely used in shaft support applications for agricultural machinery, conveying equipment, textile machinery, etc.

Main technical Specifications

New Designations :
A-UC215-300D1
Main demensions :
76.2 × 130 × 77.8
Bore Dia × Outside Dia × Width Dia (mm)
ID :
76.2 mm
Inside diameter(I.D.)
OD :
130 mm
Outside diameter(O.D.)
T(B) :
77.8 mm
Thickness(W.D.)
Category :
Insert Bearing Units

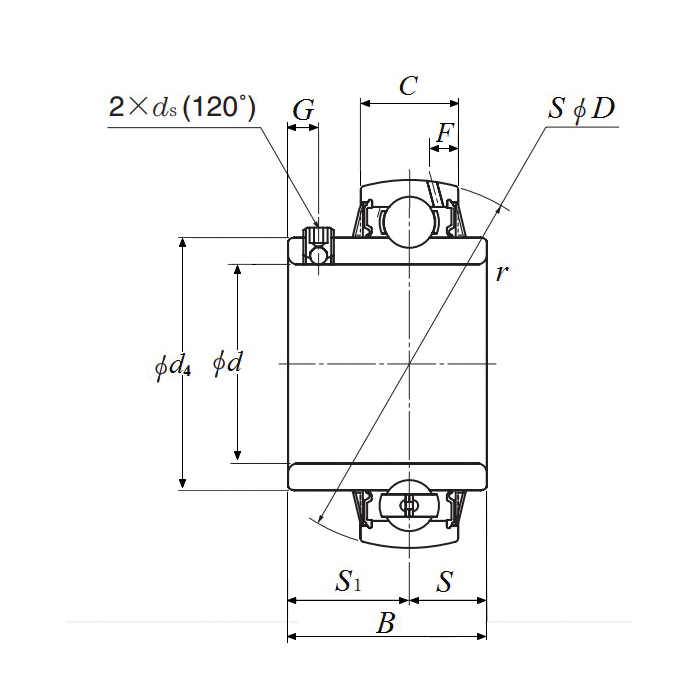

Detailed parameters and installation dimensions:

A-UC215-300D1 Ball Insert Bearing, UC2 Series, Light Duty, Cylindrical Bore, 76.2 mm = Bore (d), 130 mm = D, 77.8 mm = B, 66000 N = Load Capacity; Brand: Interchangeable From NTN A-UC215-300D1 or OEM;

Material Of Bearing: Hardened Steel
Seal Close Type: Double Seal
Max speed: 2100 rpm Grease
Sealing Material: Nitrile Rubber
Bearing Series: Ultra Class UC2
Operating Temperature Range: -40 to 120 °C
Feature: Cylindrical Bore Light Duty
Bore Dia. (d): 76.2 mm
Outside Dia. (D): 130 mm
Width (B): 77.8 mm
Load Rating: 66000 N

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

A-UC215-300D1 refers to a type of Insert Bearing Units, with dimensions 76.2 mm (Bore) x 130 mm (OD) x 77.8 mm (Width), designed for Easy to install, self-aligning, maintenance-free, primarily used in Conveying equipment, agricultural machinery, and fans, for applications Open transmission and conveying systems for low to medium speed, heavy load, and harsh environments

  • Min. Order: 1 Piece/(A-UC215-300D1, 76.2 = ID, 130 = OD, 77.8 = B, kg) or according to different suppliers
  • Price: Different brands, different quality, different A-UC215-300D1 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

Precisamos saber o preço do rolamento 6312 RS

Boa tarde NSK, Precisamos saber o preço do rolamento 6312 RS com as especificações abaixo com uma certa urgência. Poderia informar se tem represente em Vitória/ES? Nome Rolamentos Rolamentos 6312-RS Novo modelo 6312-RS Modelo antigo 160312 Rolamentos

✨What are the Benefits of choosing A-UC215-300D1 bearings?

  • Extremely simple installation: Pre-assembled unit, simply tighten bolts, no need to machine bearing housings.
  • Self-aligning: Outer spherical surface compensates for ±2° installation error, reducing jamming.
  • Lifetime sealing: Pre-filled grease + multi-layer seal, maintenance-free, dustproof and waterproof.
  • The A-UC215-300D1 Insert Bearing Units adopts a Easy to install, self-aligning, maintenance-free design, with dimensions an inner diameter of 76.2 mm, an outer diameter of 130 mm, a width of 77.8 mm, ensure the equipment operates more stably for applications Open transmission and conveying systems for low to medium speed, heavy load, and harsh environments

🏭 What are the applications of the A-UC215-300D1 bearing?

  • Agricultural machinery: Drive shafts for tractors and harvesters.
  • Conveying equipment: Drive roller shafts and tensioner shafts for belt conveyors and chain conveyors.
  • Ventilation equipment: Large industrial fans.
  • Transmission systems: Supports for the output shaft of geared motors.
    • General machinery used in industries such as textiles and food processing.
