UC.215-48.G2

Bore
76.2 mm
Outer
130 mm
Width
77.8 mm
Wight
2.13 kg
Insert Bearing Units
Self-aligning, easy to install, and with good sealing performance; widely used in shaft support applications for agricultural machinery, conveying equipment, textile machinery, etc.

Main technical Specifications

New Designations :
UC.215-48.G2
Main demensions :
76.2 × 130 × 77.8
Bore Dia × Outside Dia × Width Dia (mm)
M :
2.13 kg
Weight
ID :
76.2 mm
Inside diameter(I.D.)
OD :
130 mm
Outside diameter(O.D.)
T(B) :
77.8 mm
Thickness(W.D.)
Cr :
66 kN
Radial dynamic load rating
C0r :
49.5 kN
Radial static load rating
Category :
Insert Bearing Units

Detailed parameters and installation dimensions:

Part Number: UC.215-48.G2 SNR
Technical description (G2): G2=SNR Re-Lubrication System.
The equivalents designations: YAR215-300-2F
Bearing Type: Bearings for Housings (Insert Ball Bearing Units)
Bearing Size(metric): Inner dia. (d): 76,20 mm X Outer dia. (D): 130,00 mm X Width (B): 73,30 mm or Size: 76,20 mm * 130,00 mm * 73,30 mm
Inner (d) Inch: 3.0000
Original Equipment Manufacture(OEM NO.): UC.215-48.G2
Seals Type: 2F - Standard Seal for Y-bearings
Type of lubrication: Standard class lubrication

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

UC.215-48.G2 refers to a type of Insert Bearing Units, with dimensions 76.2 mm (Bore) x 130 mm (OD) x 77.8 mm (Width), designed for Easy to install, self-aligning, maintenance-free, primarily used in Conveying equipment, agricultural machinery, and fans, for applications Open transmission and conveying systems for low to medium speed, heavy load, and harsh environments it's built to handle significant loads (dynamic radial: 66000 N, static radial: 49500 N, ), It weight approximately 2.13 kilogram.

  • Min. Order: 1 Piece/(UC.215-48.G2, 76.2 = ID, 130 = OD, 77.8 = B, 2.13 kg) or according to different suppliers
  • Price: Different brands, different quality, different UC.215-48.G2 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

4209ATN9-MT33VB266 Rillenkugellager

Sehr geehrte Damen und Herren, ich bin auf der Suche nach einem bestimmten Lager. Rillenkugellager 4209ATN9-MT33VB266.

✨What are the Benefits of choosing UC.215-48.G2 bearings?

  • Extremely simple installation: Pre-assembled unit, simply tighten bolts, no need to machine bearing housings.
  • Self-aligning: Outer spherical surface compensates for ±2° installation error, reducing jamming.
  • Lifetime sealing: Pre-filled grease + multi-layer seal, maintenance-free, dustproof and waterproof.
  • The UC.215-48.G2 Insert Bearing Units adopts a Easy to install, self-aligning, maintenance-free design, with dimensions an inner diameter of 76.2 mm, an outer diameter of 130 mm, a width of 77.8 mm, ensure the equipment operates more stably for applications Open transmission and conveying systems for low to medium speed, heavy load, and harsh environments

🏭 What are the applications of the UC.215-48.G2 bearing?

  • Agricultural machinery: Drive shafts for tractors and harvesters.
  • Conveying equipment: Drive roller shafts and tensioner shafts for belt conveyors and chain conveyors.
  • Ventilation equipment: Large industrial fans.
  • Transmission systems: Supports for the output shaft of geared motors.
    • General machinery used in industries such as textiles and food processing.

Leave A Comment

Other models the same size : 76.2x130x77.8

UC215-48

category.Insert Ball Bearing Units 90515-48  76.2 * 130 * 77.8 , Cr: 66.22, C0r: 48.89, M: 2.26

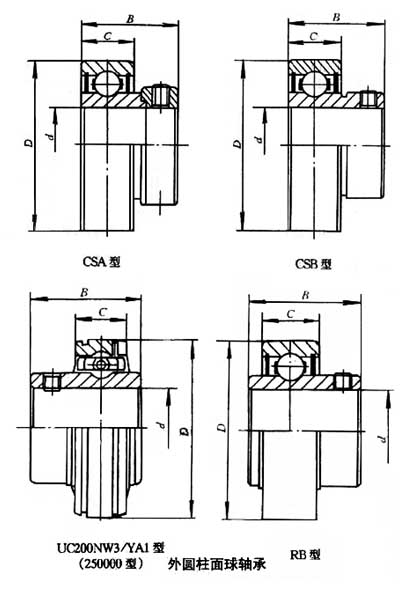

RB215-48

   76.2 * 130 * 77.8 , Cr: , C0r: , M: 2.32

UC215-300D1

category.Insert Ball Bearing Units   76.2 * 130 * 77.8 , Cr: , C0r: ,

UC.215-48.G2.L3

category.Insert Ball Bearing Units   76.2 * 130 * 77.8 , Cr: 66, C0r: 49.5, M: 2.13

UC.215-48.G2.T20

category.Insert Ball Bearing Units   76.2 * 130 * 77.8 , Cr: 66, C0r: 49.5, M: 2.13

UC215-48L3

category.Insert Ball Bearing Units   76.2 * 130 * 77.8 , Cr: 67.4, C0r: 48.3, M: 2.12

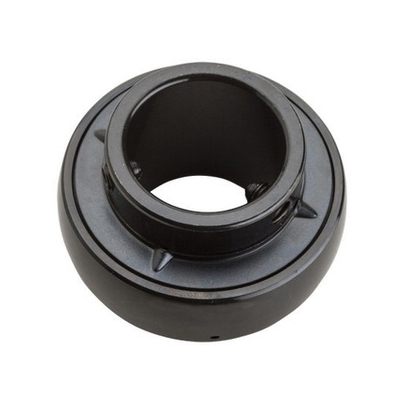

A-UC215-300D1
