KDL 900-4 W

Bore
632 mm
Outer
850 mm
Width
56 mm
Wight
45 kg
Truck and trailer slewing ring bearings
high load-bearing capacity, flexible steering, and durability, it is widely used in trailer steering systems for road truck trailers, agricultural trailers, positively steered semi-trailers, fifth wheel couplings, heavy goods vehicles and special vehicles

Main technical Specifications

New Designations :
KDL 900-4 W
Main demensions :
632 × 850 × 56
Bore Dia × Outside Dia × Width Dia (mm)
M :
45 kg
Weight
ID :
632 mm
Inside diameter(I.D.)
OD :
850 mm
Outside diameter(O.D.)
T(B) :
56 mm
Thickness(W.D.)
Category :
Truck and trailer slewing ring bearings

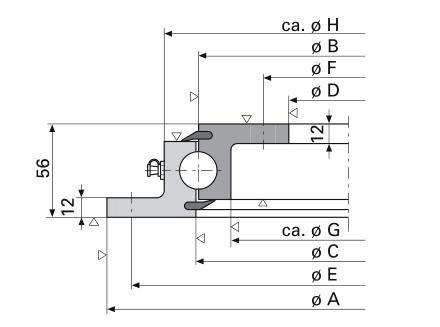

Detailed parameters and installation dimensions:

A: 850 mm, B: 739 mm, C: 742 mm, D: 632 mm, E: 820 mm, F: 662 mm, G: 701 mm, H: 781 mm, Permitted axial load (kN): 150

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

KDL 900-4 W refers to a type of large Truck and trailer slewing ring bearings, with dimensions 632 mm (Bore) x 850 mm (OD) x 56 mm (Width), designed for safely transmit the loads and tilting moment during operation of the vehicle, primarily used in transport vehicles Heavy transport and special trailers, large agricultural machinery and trailers, for applications various transportation, agricultural and special vehicles, as well as high-end equipment such as medical and wind power equipment, it plays a key connecting role in bearing multi-directional loads and achieving stable rotation. It weight approximately 45 kilogram.

  • Min. Order: 1 Piece/(KDL 900-4 W, 632 = ID, 850 = OD, 56 = B, 45 kg) or according to different suppliers
  • Price: Different brands, different quality, different KDL 900-4 W prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

RFQ CSXA045 bearing

Mr. Ian, Could you please supply a quote for 4 off and 100 off of part CSXA045. Kind Regards,

✨What are the Benefits of choosing KDL 900-4 W bearings?

  • High load-bearing capacity: Capable of simultaneously withstanding axial, radial, and moment loads, making it ideal for applications involving rotation and high load capacity, suitable for heavy-duty conditions.
  • Flexible steering: Low-friction design for easy and effortless operation.
  • Compact structure: Integrated installation saves space and weight.
  • High durability: Sealed and dirt-resistant, suitable for harsh environments.
  • High precision: Ensures steering synchronization and stability.
  • Easy installation and maintenance: Designed for easy installation and maintenance; pre-drilled holes and standardized dimensions accommodate various types of equipment.
  • The KDL 900-4 W Truck and trailer slewing ring bearings adopts a safely transmit the loads and tilting moment during operation of the vehicle design, with dimensions an inner diameter of 632 mm, an outer diameter of 850 mm, a width of 56 mm, ensure the equipment operates more stably for applications various transportation, agricultural and special vehicles, as well as high-end equipment such as medical and wind power equipment, it plays a key connecting role in bearing multi-directional loads and achieving stable rotation.

🏭 What are the applications of the KDL 900-4 W bearing?

  • Transportation: Used in heavy-duty flatbed trailers and aircraft towing vehicles, enabling multi-wheel steering under heavy loads, reducing turning radius, and improving dispatching efficiency.
  • Agricultural Machinery: Used in large agricultural trailers and towed seeders, allowing for flexible steering to adapt to field terrain and reduce damage to crops.
  • Industrial Manufacturing and Logistics: Used in port container handling vehicles (AGVs) and factory heavy material platforms, enabling flexible movement in confined spaces and improving handling efficiency.
  • Special Vehicles and Engineering Machinery: Used in oilfield-specific vehicle chassis and wind turbine blade transport vehicles, capable of withstanding extreme heavy loads and adapting to complex road surfaces, ensuring the safe transport of extra-long items.
  • Medical Equipment: Used in Gamma Knife and CT scan bed rotating frames, providing high-precision, low-noise rotation to ensure accurate diagnostic positioning.
  • Energy Equipment: Used in wind turbine yaw systems and photovoltaic tracking brackets, driving precise wind or solar tracking to improve power generation efficiency.
