T2ED050

Bore
50 mm
Outer
100 mm
Width
36 mm
Wight
1.3 kg
Metric single row tapered roller bearings
Combined radial and unidirectional axial loads, require pairing for positioning and are widely used in automotive wheel hubs, transmissions, construction machinery, and machine tool spindles.

Main technical Specifications

New Designations :
T2ED050
Main demensions :
50 × 100 × 36
Bore Dia × Outside Dia × Width Dia (mm)
M :
1.3 kg
Weight
HS Code :
8482200000
Bearing customs code
ID :
50 mm
Inside diameter(I.D.)
OD :
100 mm
Outside diameter(O.D.)
T(B) :
36 mm
Thickness(W.D.)
Cr :
188.969 kN
Radial dynamic load rating
C0r :
199.684 kN
Radial static load rating
Grease rpm :
5579 r/min
Reference speed
Oil rpm :
6605 r/min
Limiting speed
Category :
Single row taper roller bearings

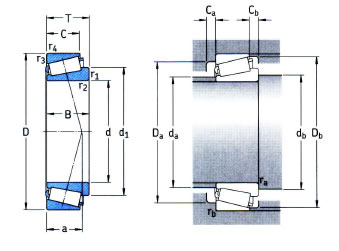

Detailed parameters and installation dimensions:

Part Number T2ED050
Units Metric
Series T2ED
Speed ratings (grease) - nB 5579 min–1
Speed ratings (oil) - nG 6605 min–1
Contact angle - α 12.85 °
Dimension series 2ED
Dimension Inside - d φ 50 mm | 1.969 inch
Ring Material GCr15SiMn
Dimension Outside - D Φ 100 mm | 3.937 inch
Dimension Thickness - T 36 mm | 1.417 inch
Dimension - d1 73.5 mm | 2.894 inch
Cage Stamping steel cage
Dimension Cone - B 35 mm | 1.378 inch
Dimension Cup - C 30 mm | 1.181 inch
Fatigue load limit - Pu 21846 N | 4910 lbf
Bearing Type Metric single row tapered roller bearings
Mounting dimensions shaft - db min. 61 mm | 2.402 inch
Mounting dimensions housing - Db min. 94 mm | 3.701 inch
Mounting dimensions Radius - rb max. 2.5 mm | 0.098 inch
Limiting value - e 0.35
Matched arrangement No
Dimension Chamfer - r1,2 min. 2.5 mm | 0.098 inch
Mounting dimensions - Cb min. 6 mm | 0.236 inch
Mounting dimensions shaft - da max. 59 mm | 2.323 inch
Mounting dimensions housing - Da min. 84 mm | 3.307 inch
Flange No
Calculation coefficient - Y 1.7
Bore Cylindrical bore
Relubrication No
Heat stabilized 120 °C (250 °F)
Row NO. One
Bearing Mass - m 1.3 kg | 2.866 lb
Manufacturer Part Code T2ED 050
Dimension pressure points - a 24.5 mm | 0.965 inch
Bearing part Complete
Mounting dimensions housing - Da max. 90 mm | 3.543 inch
Mounting dimensions - Ca min. 6 mm | 0.236 inch
Mounting dimensions Radius - ra max. 2.5 mm | 0.098 inch
Dimension Chamfer - r3,4 min. 2.5 mm | 0.098 inch
Seal Open
Roller Material GCr15SiMn
Calculation coefficient - Y0 0.9
Radial Dynamic Capacity - Cr 188969 N | 42480 lbf
Radial Static Capacity - C0r 199684 N | 44888 lbf
Coating No
Lubricant No

NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

T2ED050 refers to a type of T2ED Metric single row tapered roller bearings, with dimensions 50 mm (Bore) x 100 mm (OD) x 36 mm (Width), designed for Simultaneously withstands combined loads (radial and axial loads) and is detachable for installation, primarily used in Machine tool spindle, gearbox, automobile wheel hub, Its normal operating speed can reach: the grease speed ratings: 5579 rpm, oil speed ratings: 6605 rpm, featuring One (row) construction, Stamping steel cage retainer to ensure extended service life, for applications Medium and low speed heavy load and combined load. it's built to handle significant loads (dynamic radial: 188969 N, static radial: 199684 N, ), It weight approximately 1.3 kilogram.

  • Min. Order: 1 Piece/(T2ED050, 50 = ID, 100 = OD, 36 = B, 1.3 kg) or according to different suppliers
  • Price: Different brands, different quality, different T2ED050 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
  • Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
  • Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp

Specifications From Tradebearings:

Part CodeT2ED050
Inside Diameter (d)50 mm
Outside Diameter (D)100 mm
Thickness (T)36 mm
a25 mm
Cone Width (B)35 mm
Cup Width (C)30 mm
Ca min6 mm
Cb min6 mm
Da max90 mm
Da min84 mm
Db min94 mm
d173.5 mm
da max59 mm
db min61 mm
r1.2 min2.5 mm
r3.4 min2.5 mm
ra max2.5 mm
rb max2.5 mm
Cr150000 N
C0r188000 N
Maximum RPM(Oil)7200 1/min
Maximum RPM(Grease)4750 1/min
Fatigue Load Capacity For Radial Cur23400 N
e0.34
Y1.75
Y00.96
Bearing Mass1.28 kg

REQUEST FOR QUOTE TIMKEN BEARINGS HM905843, M268749

P/N: HM905843 BRAND: TIMKEN DESCRIPTION: 4 units. HM905843 bearings P/N: M268749 BRAND: TIMKEN DESCRIPTION: 1 unit. TIMKEN bearing. Type: TDITG CONE. 1-M268749 TDGK 2-CUP

✨What are the Benefits of choosing T2ED050 bearings?

  • Separable Installation: The inner ring assembly can be separated from the outer ring, making installation, disassembly, and maintenance very convenient.
  • Composite Load Bearing: Capable of simultaneously withstanding radial and unidirectional axial loads, exhibiting strong versatility.
  • High Rigidity: When installed in pairs, the system exhibits high rigidity, accurately guiding the shaft system.
  • Low Friction: Designed for pure rolling, resulting in low operating friction and minimal heat generation.
  • The T2ED050 Single row taper roller bearings adopts a Simultaneously withstands combined loads (radial and axial loads) and is detachable for installation design, with dimensions an inner diameter of 50 mm, an outer diameter of 100 mm, a width of 36 mm, featuring One (row) construction from T2ED (series), ensure the equipment operates more stably , and the maximum speed can reach (Limit Speed Ratings (grease) rpm:5579 Limit Speed Ratings (oil) rpm:6605)for applications Medium and low speed heavy load and combined load

🏭 What are the applications of the T2ED050 bearing?

  • Automotive Industry: Transmissions, differentials, wheel hubs. Bearing complex loads, ensuring smooth and precise operation at high speeds.
  • Industrial Transmission: Gearboxes, reducers, machine tool spindles. Providing high rigidity, reducing vibration, and ensuring transmission accuracy.
  • Railway/Roller Vehicles: Wheel bearings. High load-bearing capacity, adaptable to frequent starts and stops and impacts.
