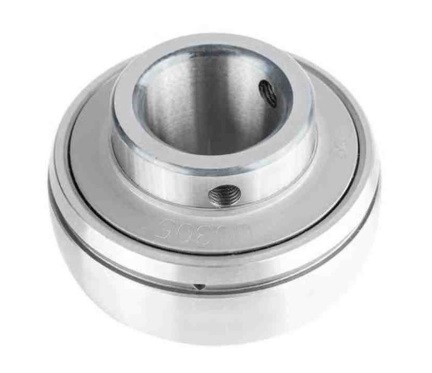

UC207
Main technical Specifications

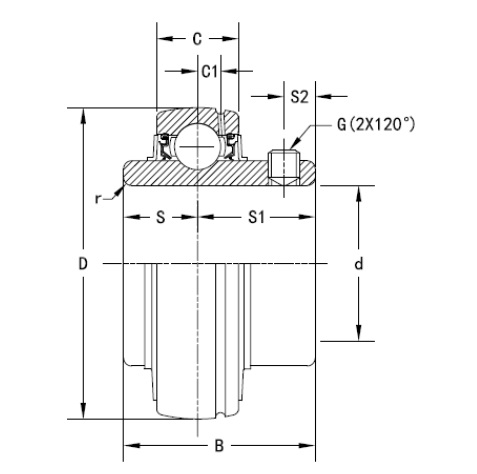

Detailed parameters and installation dimensions:
| Part Number | UC207 |
| Locking Type | Set Screw |
| Set Screw Size | M8x1 |
| Angle between Set Screws | 120 ° |
| Dimension Shaft Size | 35 mm |
| Dimension Inside - d φ | 35 mm | 1.378 inch |
| Dimension Outside - D Φ | 72 mm | 2.835 inch |
| Dimension Inner Ring Width - B | 42.9 mm | 1.689 inch |
| Dimension Outer Ring Width - C | 20 mm | 0.787 inch |
| Outside Diameter Type | Spherical |
| Bore Type | Cylindrical |
| Series | UC200 |
| Seal Type | Double Seal |
| Units | Metric |
| Number Of Balls | One |
| Number Of Set Screws | 2 |
| Groove Position - C1 | 5.7 mm | 0.224 inch |
| Set Screw Distance - S2 | 6.5 mm | 0.256 inch |
| Rolling Element Material | Bearing Steel |
| Inner/Outer Ring Material | Bearing Steel |
| Load | radial |
| Interchangeable | TIMKEN UC207 |
| Dimension Chamfer - r | 1.1 mm | 0.043 inch |
| Center of Bearing from End - S | 17.5 mm | 0.689 inch |
| Radial Dynamic Capacity - Cr | 25700 N | 5777 lbf |
| Radial Static Capacity - C0r | 15400 N | 3461 lbf |
| Rolling Element Type | Ball |
| Bearing Type | Set Screw Locking UC 200 Series Wide Inner Ring Insert Ball Bearings |
| Dimension - S1 | 25.4 mm | 1.000 inch |
The equivalents & Variants model of UC207 Insert Bearing Units:
FYH UC207, NTN UC207D1, FAG 56207, SKF YAR207-2F, NSK UC207, ASAHI UC207,
NOTE: All other trademarks are the property of their respective owners, used for the purpose of compatibility description and product identification only. Tradebearings is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
UC207 refers to a type of UC200 Set Screw Locking UC 200 Series Wide Inner Ring Insert Ball Bearings , with dimensions 35 mm (Bore) x 72 mm (OD) x 42.9 mm (Width), designed for Easy to install, self-aligning, maintenance-free, primarily used in Conveying equipment, agricultural machinery, and fans, for applications Open transmission and conveying systems for low to medium speed, heavy load, and harsh environments. it's built to handle significant loads (dynamic radial: 25700 N, static radial: 15400 N, ), It weight approximately 0.4 kilogram.
- Min. Order: 1 Piece/(UC207, 35 = ID, 72 = OD, 42.9 = B, 0.4 kg) or according to different suppliers
- Price: Different brands, different quality, different UC207 prices, different suppliers and different quality determine different prices, you can ask the supplier in detail for the price according to your own needs.
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
- Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
Specifications From Tradebearings:
Manufacturer Part Code: UC207;
Dimension Inside - id φ: 35 mm;
Dimension Outside - OD Φ: 72 mm;
Width Of Outer Ring: 20 mm;
Width Of Inner Ring: 42.9 mm;
Type Of Bore: Straight Bore;
Locking Equipment: Set Screw;
Radial (Dyn. load rating Cr): 2640 kgf;
Radial (Stat. load rating C0r): 1570 kgf;
Material of Bearing: AISI 52100 Steel;
Seal Type: Contact with Slinger;
Bearing Series: UC200;
Dimension Inside - id φ: 35 mm;
Dimension Outside - OD Φ: 72 mm;
